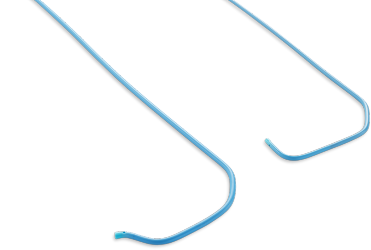

OPTITORQUE® Diagnostic Catheter

A complete line of coronary diagnostic catheters designed for optimum torque control and precise placement.

Radial Specific

  • Radial specific curves designed to enable support and alignment during catheterization

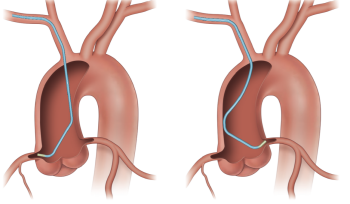

  • Tiger and Jacky curve shapes available in two sizes for various anatomy

Universal Shapes

  • Enables angiography of both RCA and LCA with one catheter by eliminating a catheter exchange step and potentially shortens procedure and fluoroscopic time

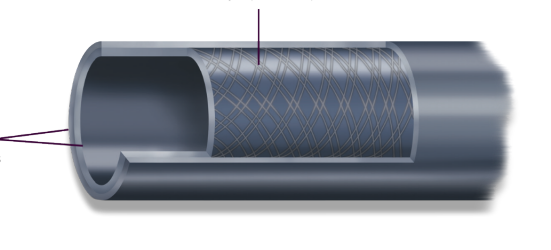

Unique Design

  • Designed for coaxial alignment to the ostium, allowing the catheter to sit at the appropriate angle for optimal engagement
  • Large lumen allows high flow of contrast media and allows downsizing of French size

OPTITORQUE RADIAL-SPECIFIC SHAPES

SHAPE CATEGORY

PRODUCT CODE
PRODUCT CODE

SHAPE NAME

LENGTH
(CM)

SIDE HOLES

  5Fr/1.70 mm 6Fr/2.00 mm

Tiger

40-5011 40-6011 Radial TIG 4.0 100 1
40-5013 40-6013 Radial TIG 4.0 110 1
40-5012 40-6012 Radial TIG 4.5 100 1
40-5014 - Radial TIG 4.5 110 1

Jacky

40-5021 40-6021 Jacky Radial (Curve Size 3.5) 100 2
40-5023 40-6023 Jacky Radial (Curve Size 3.5) 110 2
40-5022 40-6022 Sarah Radial (Curve Size 4.0) 100 2
40-5024 40-6024 Sarah Radial (Curve Size 4.0) 110 2

OPTITORQUE CLASSIC SHAPES

SHAPE CATEGORY

PRODUCT CODE
PRODUCT CODE

SHAPE NAME
(CM)

LENGTH HOLES

SIDE TIP

SHAPE

Pigtail

40-5030 - Straight Pigtail 110 6
40-5031 40-6031 Angled Pigtail 155° 110 6

RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
