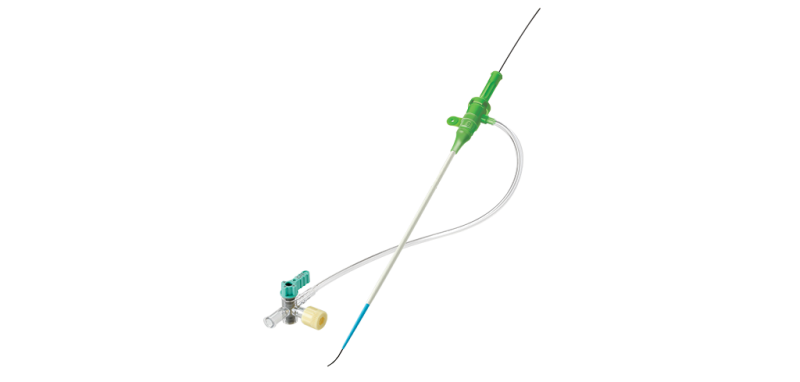

GLIDESHEATH™ Introducer Sheath

The GLIDESHEATH you know and trust.

The GLIDESHEATHTM Introducer System is a radial access kit specifically designed and intended for smooth atraumatic radial access to minimize the risk of scarring and damage.1

  • Incorporates full length Terumo Glide TechnologyTM to ensure easy insertion and removal
  • Offers kink resistance to keep the lumen open throughout the procedure1
  • Four kit styles that can meet your radial access needs

GLIDESHEATH™ ACCESS KIT*

Access Method: Double Wall Puncture

PRODUCT CODE SHEATH SIZE
(FR)
SHEATH INNER DIAMETER
(IN)
TIP INNER DIAMETER
(IN)
SHEATH LENGTH
(CM)
NEEDLE SIZE
(G)
NEEDLE LENGTH
(IN)
GUIDEWIRE SIZE
(IN)
GUIDEWIRE LENGTH
(CM)
GUIDEWIRE
30-1040 4 0.061 0.055 10 22 1 0.021 45 Plastic/Short Taper/Angle

* Includes GLIDESHEATH, SURFLO IV Catheter, Dilator, 2.5 mL Syringe, Nitinol/Plastic Mini Guidewire

GLIDESHEATH™ BASIC KIT

PRODUCT CODE SHEATH SIZE (FR) SHEATH INNER DIAMETER
(IN)
TIP INNER DIAMETER
(IN)
SHEATH LENGTH (CM) GUIDEWIRE SIZE
(IN)
GUIDEWIRE LENGTH
(CM)
GUIDEWIRE
40-1040 4 0.061 0.055 10 0.021 45 Spring/Straight
40-1650 5 0.074 0.068 16 0.021 80 Spring/Straight
40-1660 6 0.087 0.082 16 0.021 80 Spring/Straight

GLIDESHEATH™ SS KIT

Access Method: Anterior Wall Puncture

PRODUCT CODE SHEATH SIZE
(FR)
SHEATH INNER DIAMETER
(IN)
TIP INNER DIAMETER
(IN)
SHEATH LENGTH
(CM)
NEEDLE SIZE
(G)
NEEDLE LENGTH
(IN)
GUIDEWIRE SIZE
(IN)
GUIDEWIRE LENGTH
(CM)
GUIDEWIRE
20-1050 5 0.074 0.068 10 21 1.4 0.021 45 Spring/Straight
20-2550 5 0.074 0.068 25 21 1.4 0.021 80 Spring/Straight
20-1060 6 0.087 0.082 10 21 1.4 0.021 45 Spring/Straight
20-2560 6 0.087 0.082 25 21 1.4 0.021 80 Spring/Straight

GLIDESHEATH™ NITINOL KIT

Access Method: Anterior Wall Puncture

PRODUCT CODE SHEATH SIZE
(FR)
SHEATH INNER DIAMETER
(IN)
TIP INNER DIAMETER
(IN)
SHEATH LENGTH
(CM)
NEEDLE SIZE
(G)
NEEDLE LENGTH
(IN)
GUIDEWIRE SIZE
(IN)
GUIDEWIRE LENGTH
(CM)
GUIDEWIRE
15-1060 6 0.087 0.082 10 21 1.5 0.021 43 Nitinol/Floppy Tip

Reference:

  1. Data on File



RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
