PINNACLE™ TIF TIP™ Introducer Sheaths


Total Integrated Fit (TIF) technology requires less force than comparable sheaths1


TIF technology provides smooth transitions from total integrated tip designed to reduce the risk of gaps and arterial damage that can lead to major complications during access procedures.1

  • Kink resistant design1
  • Small OD and large ID helps minimize the size of the access site without compromising ease of device passage1
  • Snap-on dilator lock helps prevent backout during insertion1

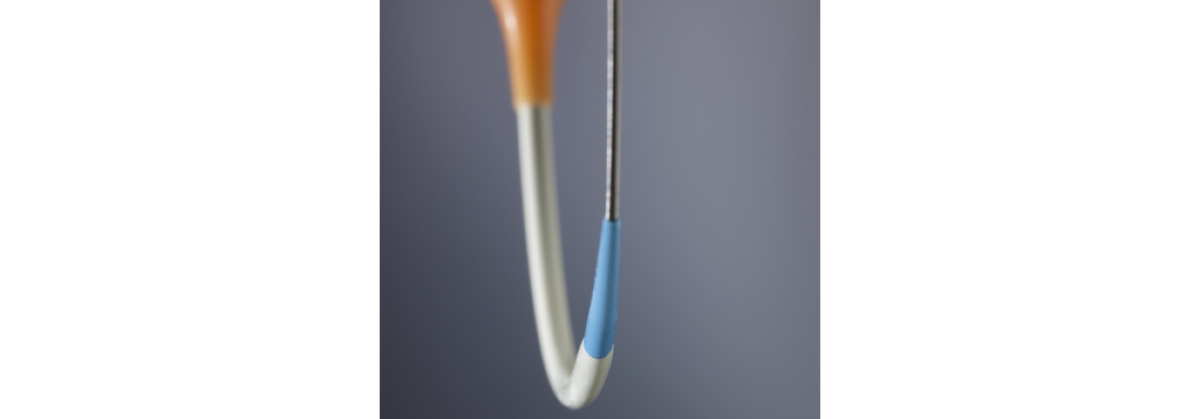

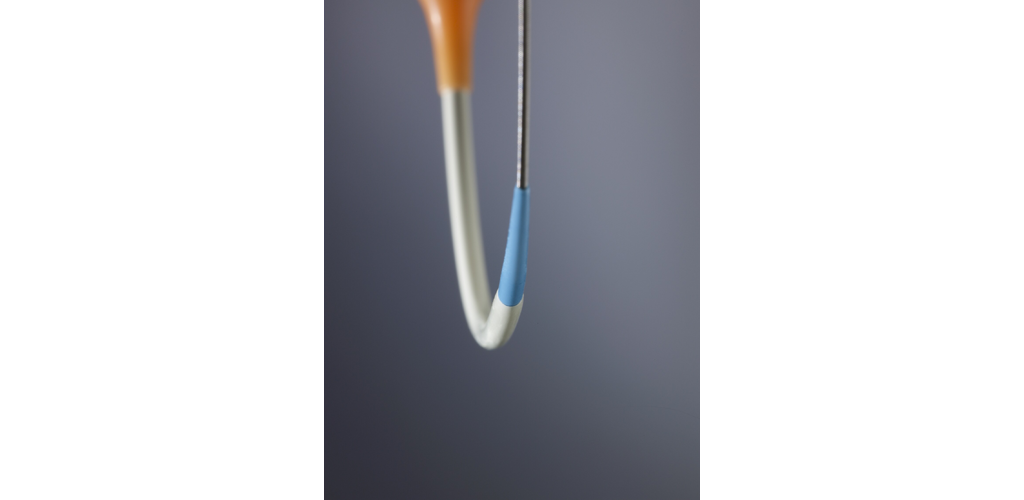

Pinnacle TIF Tip Introducer with dilator and guidewire show the smooth transitions

USE WITH CONFIDENCE

  • Seamless guidewire-to-dilator and dilator-to-sheath transition are designed to reduce risk of gaps and arterial damage

REDUCE COMPLICATIONS

  • Performs well in simulated difficult access sites and tissue

EASY ACCESS

  • Optimal tapering design at the tip of the sheath and dilator for smooth penetration1

Arterial Sheath With Tip Penetration Force


TIF technology provides smooth transitions from total integrated tip designed to reduce the risk of gaps and arterial damage that can lead to major complications during access procedures.1

PINNACLE® TIF TIP™

PRODUCT CODE LENGTH (CM) FRENCH SIZE DILATOR PROTRUDING LENGTH (CM) MINI GUIDEWIRE DIAMETER (IN)
10-2031 10 5 2.5 0.035
10-2032 10 6 2.5 0.035
10-2033 10 7 2.5 0.035
10-2034 10 8 2.5 0.035
10-2531
 10 5 2.5 0.038
10-2532
 10 6 2.5 0.038
10-2533
 10 7 2.5 0.038
10-2534
 10 8 2.5 0.038

Frequently Asked Questions

What is an introducer sheath used for?

An introducer sheath is a medical device used during procedures that require access to blood vessels, such as catheterization or the placement of stents and pacemakers. It acts as a protective conduit, allowing instruments to be inserted into the vessel while minimizing trauma to the vessel wall. The sheath typically includes a dilator to ease insertion and a valve to prevent blood loss. Its use helps maintain a sterile field, improves procedural efficiency, and reduces complications like bleeding or vessel damage.

What is a vascular sheath?

A vascular sheath used in interventional surgery is a specialized medical device that provides secure and stable access to blood vessels during minimally invasive procedures. It acts as a conduit through which catheters, guidewires, and other instruments are introduced into the vascular system. These sheaths are designed with features like hemostatic valves to prevent blood loss, hydrophilic coatings for smoother insertion, and structural reinforcements to resist kinking. Vascular sheaths are essential in procedures such as angioplasty, stenting, and cardiac catheterization, enabling precise device delivery while minimizing trauma to the vessel wall and reducing the risk of complications like bleeding or thrombosis.

Reference:

  1. Data on file.

RX ONLY. The advertisement is directed to physicians only, and not to consumers. Refer to product labels and packaging insert for complete warnings, precautions, potential complications, and instructions for use. Products may not have regulatory approval in all countries. Please contact your local sales representative if you have questions about the availability of products in your area.
